Cricut in the Classroom: Build a Hand That Moves

Some Cricut projects are useful because they save prep time. Others are useful because the accuracy of the cut actually changes how well the project works.

This articulated hand is a good example of both.

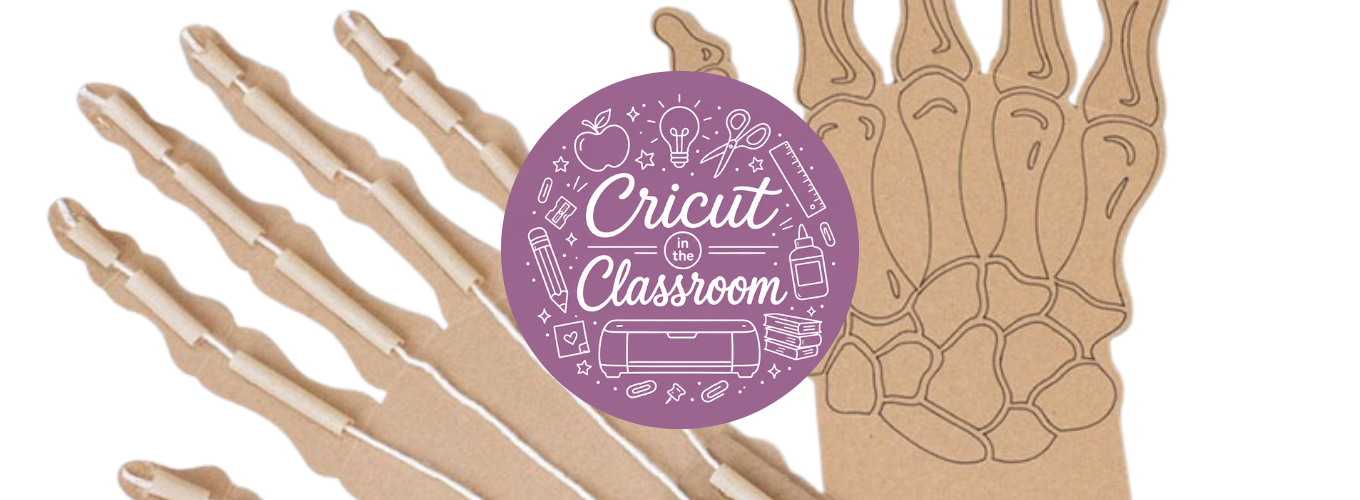

Students build a moving model using a cut and scored hand, small pieces of straw, and string. When they pull the strings, the fingers bend along the scored joints. It is a simple model, but it gives students something they can actually move, test, and take apart as they think about how joints and pulling forces work together.

Featured Design Space project: Articulated Hands STEM Activity
Inspired by: Henriette Rossouw’s project

How the Project Works

The Design Space project uses Kraftboard for the hand, score lines for the joints, pieces of straw as guides, and string to make the fingers move.

Each string runs through the straw pieces and connects near a fingertip. Pull the string and the finger bends. Release it and the finger moves back toward its original position.

It is not meant to be an exact model of a human hand. The value is in being able to see the basic mechanics in action.

Students can see pretty quickly that the placement of the joints matters, the straw pieces need to stay out of the way of the folds, and a small change in where something is attached can change how the finger moves.

This Is Where Cricut Really Helps

The score lines are probably the most important part of this project.

If they are in slightly different places from one hand to another, the fingers will not bend the same way. That makes it harder to tell whether a design change made a difference or whether one hand was simply cut or folded more accurately.

Cricut gives every group the same starting point.

It can cut the hand shape, draw the details, and place the score lines consistently on each copy. That is especially helpful if you are making enough hands for a class instead of tracing and cutting each one individually.

Make One Before You Make Twenty

This is definitely a project worth testing once before cutting a full class set.

Put one hand together from beginning to end and make sure the material bends well, the score lines are deep enough to guide the folds, the straw pieces fit between the joints, and the string moves easily through them.

Material choice matters here more than it might on a flat paper project.

The hand needs to be stiff enough to hold its shape but flexible enough to bend where it is scored. Kraftboard works well for that balance. If you decide to reinforce the hand with cardboard, keep the reinforcement around the palm or handle rather than across the finger joints.

A Couple of Details Make a Big Difference

The straw pieces act as guides for the string, so they should stop before each scored joint.

If a straw crosses a fold, that finger may not bend very well. If the pieces are too short or spread too far apart, the string can pull away from the finger instead of staying in place.

It is also worth testing the string path before gluing everything down permanently.

Make sure each string runs freely to the right fingertip and leave enough extra at the wrist for students to grab comfortably. Different string colors can also make it much easier to see which one controls each finger.

Then Let Students Change Something

Once the original hand works, this becomes a much more interesting Cricut project.

Students can start changing one thing at a time and see what happens.

They might:

• Try a different compatible material
• Reinforce only the palm
• Change the length of the straw guides
• Adjust a string attachment point
• Make the hand larger or smaller
• Compare all five moving fingers with a simpler version
• Add labels to the joints or string paths

Because the original Design Space file is already there, they do not have to rebuild the whole model each time they want to test an idea.

Keep an untouched copy of the original project before making changes, especially if students will be resizing or moving parts.

A Simple Way to Test the Finished Hand

The original project suggests using the completed hands for rock, paper, scissors.

That is actually a pretty good test.

Can the hand close into a fist? Can it hold two fingers out for scissors? Can individual fingers move without pulling the others along with them?

If not, students have something specific to look at and adjust.

Why This One Is Worth Trying

This project would be possible without Cricut, but making a whole class set by hand would add a lot of variation and a lot of cutting.

Cricut keeps the hand shapes, score lines, and repeated parts consistent. That leaves more time for students to assemble the mechanism, make it move, figure out what is happening, and try changes of their own.

And that is really the strength of this project: Cricut gets the repetitive, precision-heavy part out of the way so the interesting part can happen after the pieces are cut.

Design Space projects, images, materials, dimensions, machine compatibility, and Cricut Access requirements can change. Open the project before planning the activity and check the current project details.

This is a fun one to keep in mind when you want students doing more than assembling a finished Cricut project. Once the hand is moving, there are plenty of ways to test it, compare versions, and see how small design choices affect the result.
