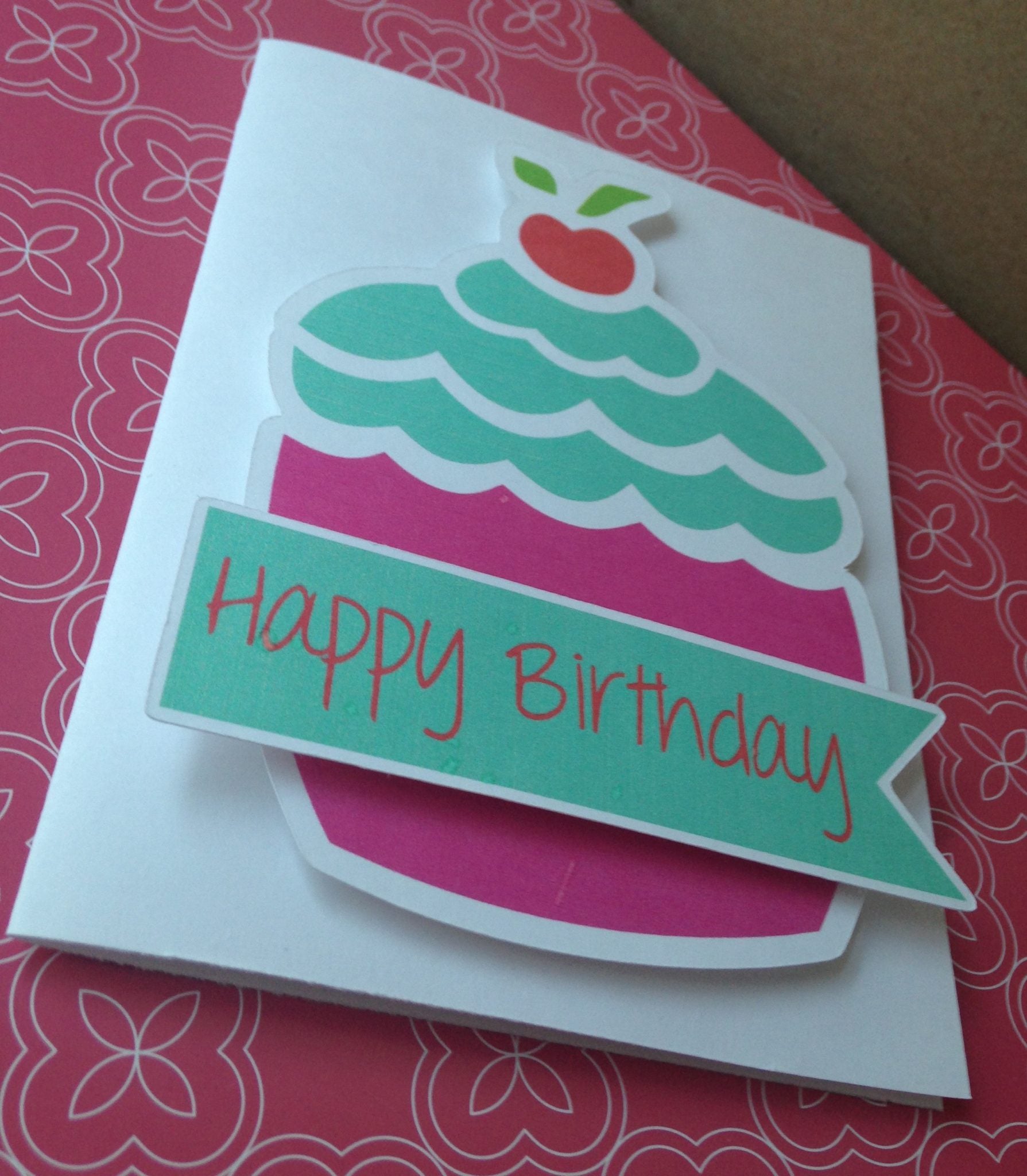

Learning how to do Print and Cut with your Silhouette machine will open up such a wide range of things you can do with your machine!  I created this card with a few simple Print and Cut images:

This card is super cute!  Two easy print and cut images and a few pop dots and it's done!  So easy to make your own printed die cuts!

There are two ways to use the Print and Cut function with your Silhouette machine.

  1. You can purchase pre-made designs that are ready to Print and Cut
  2. You can make your own images from scratch

This post will cover how to work with files that you purchase, but you can check out Silhouette 102: How to Create Print and Cut Designs, From Scratch! if you’d like to make your own!

When you have purchased a Print and Cut file, you will need to download the file and save it somewhere convenient on your computer.

Once you have downloaded your image, open your Silhouette Studio then go to File–> Open and find your file you have saved.  This will bring your image into Silhouette Studio.  Next, click on the Registration Mark Window:
Great tutorial on how to use the Silhouette Print and Cut feature.  The first step is getting the registration marks in place with the Registration Mark window.

I have always used the default settings, but you can change it up if you’re feeling adventurous!

Once you click on the Registration Window, select the Style that you would like to use from the drop down box.  The options are: Off, Type 1 (Cameo, Portrait, Curio) or Type 2 (Original, SD):

How to do Print and Cut with the Silhouette!  It's so easy, why haven't I done this yet?I am using my Silhouette Cameo, so I picked Type 1.

This will add the Registration Marks to your work space.  There are a few different pieces to the Print and Cut window, so I thought it might be helpful to diagram it out for you:

This helpful diagram shows all the pieces of the print and cut feature on the Silhouette Cameo.  I couldn't figure out what all the lines meant, now I know!  Pinning now for use later!The large gray box in the background is your Silhouette Cutting Mat.  The white box on top of the Silhouette Cutting Mat is your material (in this case, I am going to use a piece of 8.5″ x 11″ cardstock).  You can adjust both of these settings by clicking on the Design Page Settings window where “Page Size” is your material:

The Design Page Settings window in Silhouette software allows you to change the page size (your material you're cutting) and rotate your view.

Next, ensure that you are positioning your image correctly.  You will need to pay attention to two things on your work area:

1) The red outside box:  This is the cut border for your material.  Nothing outside the red box will cut, even if it contains cut lines.

2) The cross hatch area:  This area is an area that the Print and Cut function looks at and you’ll want to keep anything that is printable outside of the cross hatch area (cut lines inside the cut area is okay, however).

For example:

What do those cross hatch marks mean in the Silhouette Studio Software?  NOW I KNOW!

The blue flower tag on the left will not work because the printing area is inside the cross hatch area.  The orange flower tag on the right is okay though, because the printable area is outside the cross hatch area, though there are cut lines within the cross hatches.  If in doubt, just keep everything you’re working on outside of the cross hatches.

Once you have your design situated, click the Send to Printer button:

The Silhouette send to printer button sends your design to a connected or networked printer.

Note: You will need to have a printer either connected to your computer or you will need a networked printer to use, the Silhouette Cameo does not do the actual printing.

Your printer will print off a sheet with your printable file and some registration marks.  Notice that the gray hatch marks are not printed.

Once you print your design, you attach it to your mat.  The Print and Cut feature is SO EASY!

Place the printed paper in the upper left hand corner of your cutting mat.  Be careful to aligning it straight (follow the grid marks on your cutting mat).  Load your cutting mat into your machine.

Next, click the Send to Silhouette Button:

The Silhouette send to Silhouette button sends your designs to be cut out by your Silhouette machine.

The machine will read the printed Registration Marks.  If your machine is having problems finding the Registration Marks, you will have to trouble shoot it (more on that in a different post).

Once your machine reads all three Registration Marks, it will begin to cut out your designs:

The Silhouette is so handy!  Check out these perfectly cut embellishments I can put together to make a quick and easy card!

To finish off my card, I cut a piece of white card stock for my card base.  I added foam adhesive dots to the back of the cupcake so it wouldn’t be flat on the card base.  Next I put more foam adhesive dots on the back of the Happy Birthday banner to make it pop it off the cupcake and give the card dimension:

I used the Silhouette Cameo to print and cut my own embellishments and made this cute card in a beat.  So quick and easy and looks so professional!

This was such a simple and easy card!  Doing Print and Cut is like making making your own die cut embellishments!

The Silhouette Print and Cut make it so easy to whip up a beautiful card! I never knew it was so easy!
